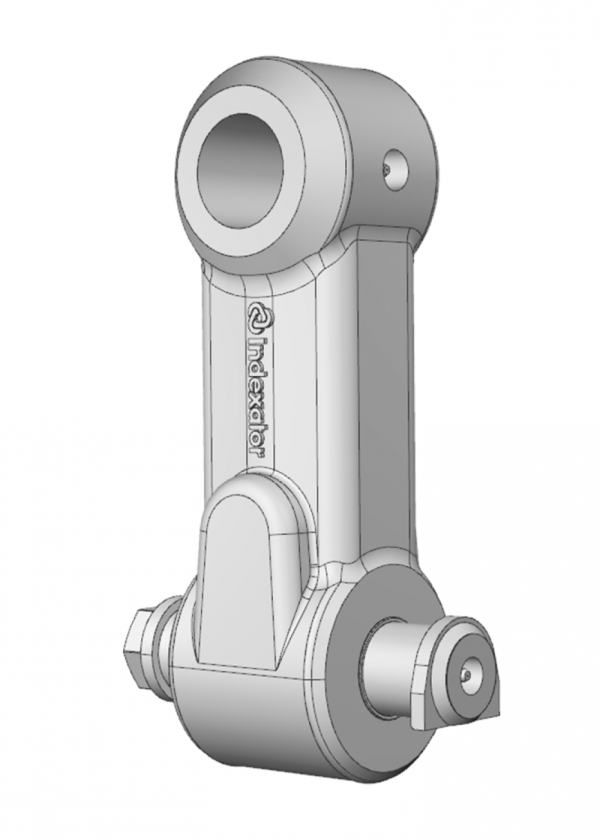

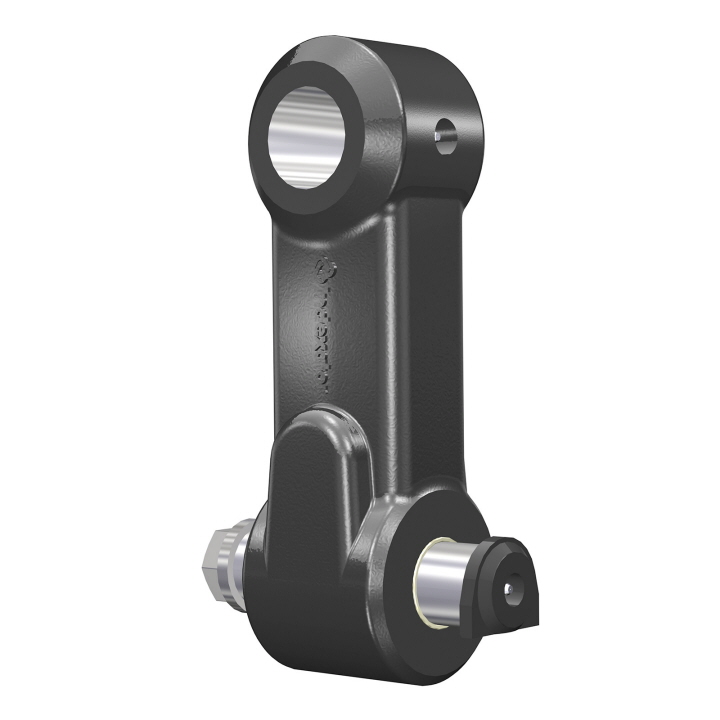

Link S-100/50
Technical data
| Part No | 5016224 |
|---|---|
| Upper interface | 100 mm |
| Lower interface | 100 mm |
The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.
For further technical information relating to integration, please contact rotator@indexator.com
Bushing
| Diameter, upper bushing (C) | Bronze |
|---|---|
| Ø50 mm | 2 x 1077841 |

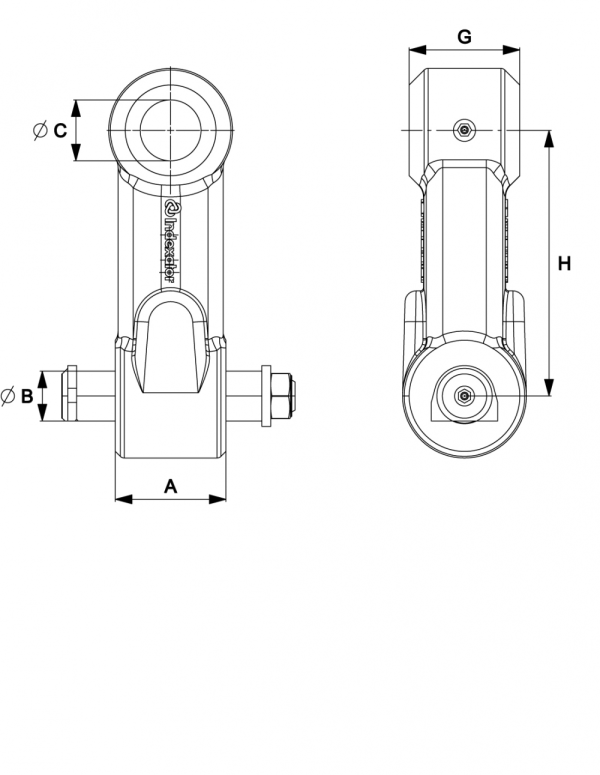

Link S-100/50A100 mmBØ45 mmCSee tableG100 mmH240 mm
Specyfikacja techniczna
| Part No: | 5016224 |
| Upper interface: | 100 mm |
| Lower interface: | 100 mm |
