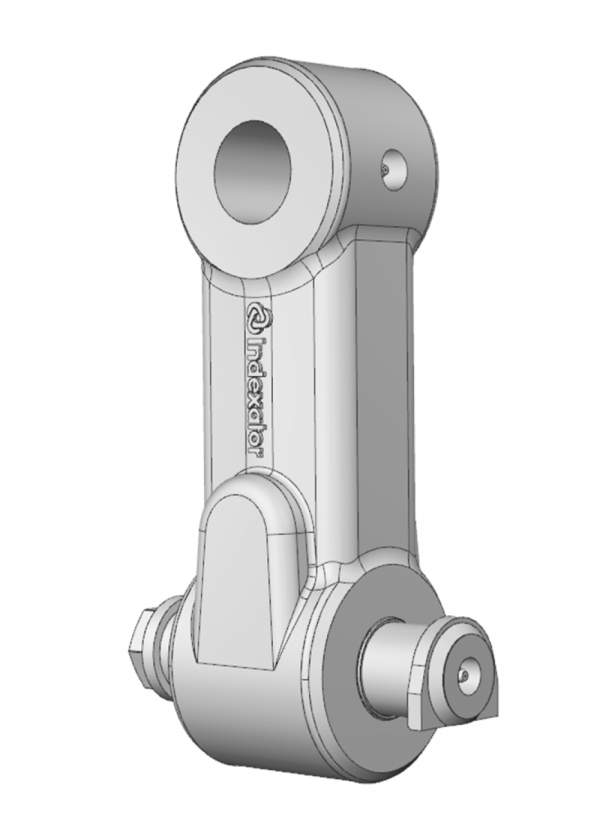

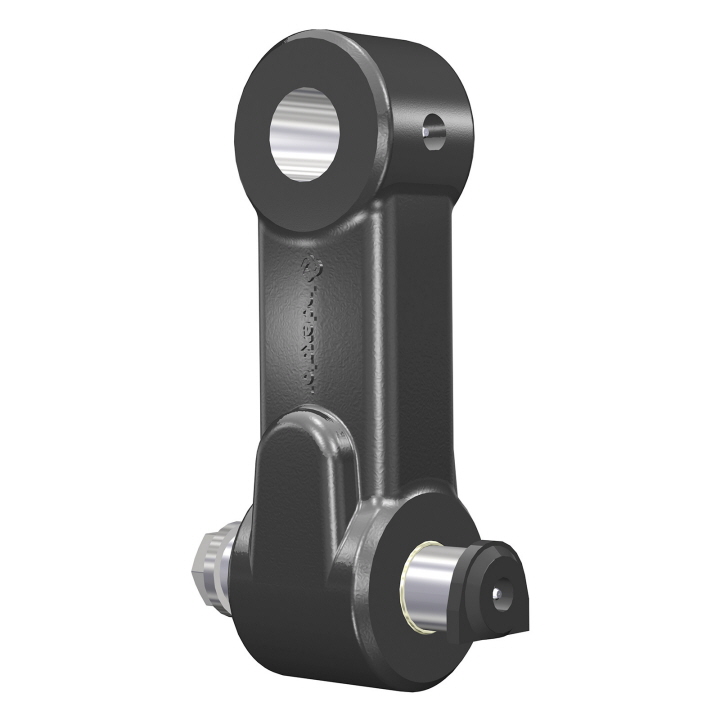

Link S-80
Technical data
| Part No | 5016143 |
|---|---|
| Upper interface | 80 mm |
| Lower interface | 100 mm |
Bushing
| Diameter, upper bushing (C) | Bronze | ManganBronze | Composite |
|---|---|---|---|
| Ø45 mm | 2 x 1003193 | 2 x 5006672 | - |
| Ø40 mm | - | 2 x 5006685 | 1 x 5002401 |
| Ø35 mm | - | 2 x 5006687 | 1 x 5002402 |
| Ø30 mm | - | - | 1 x 5002403 |
The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.
For further technical information relating to integration, please contact rotator@indexator.com

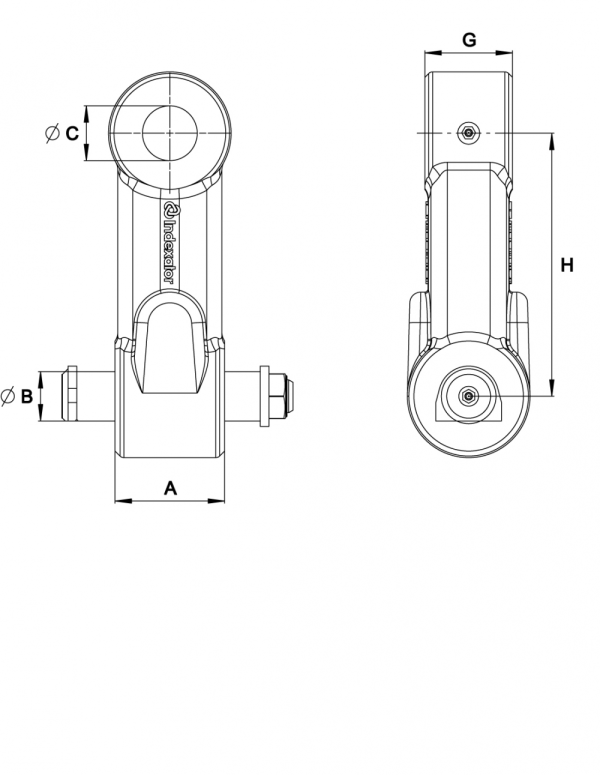

Link S-80A100 mmBØ45 mmCSee tableG80 mmH240 mm
Specyfikacja techniczna
| Part No: | 5016143 |
| Upper interface: | 80 mm |
| Lower interface: | 100 mm |
