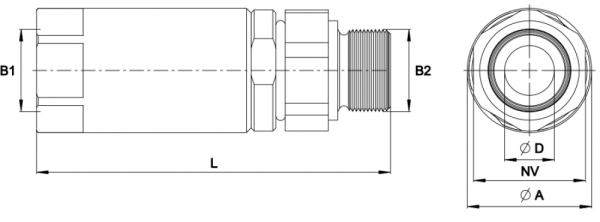

| G 1/4 - G 1/4 | |
|---|---|
| B1 | G 1/4 |
| B2 | G 1/4 |
| L | 85 mm |
| ØD | 6 mm |
| NV | 32 mm |
| ØA | 35 mm |
| Part No.: | 5001597 |
| Type: | Inner x Outer |
| Type of connection: | G-G |
| Max work pressure: | 40 MPa |
| Max peak pressure: | 60 MPa |
| Seal kit: | 5001630 |
