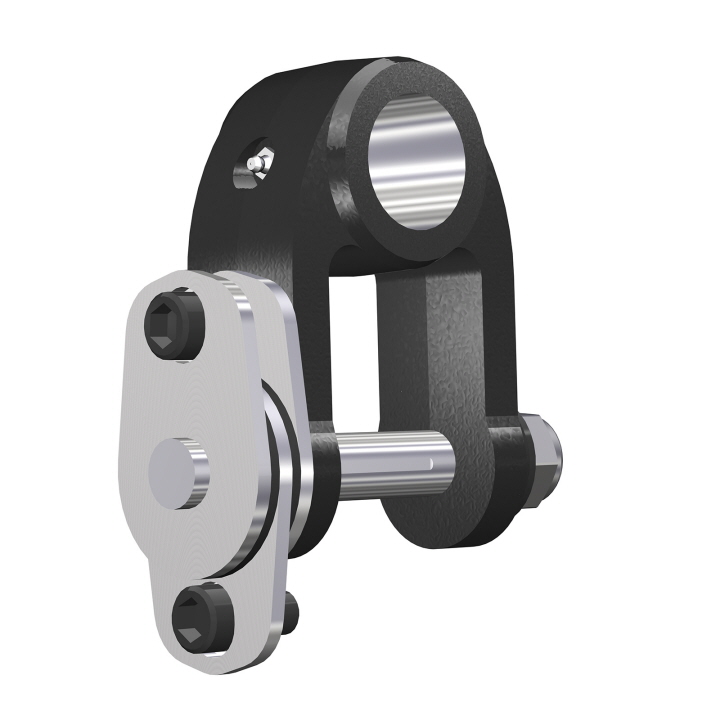

Single swing damper GV 3/4-70
Technical data
| Part No | 5030004 |
|---|---|
| Brake against rotator | Multiple disc brake |
| Upper interface | 70 mm |
| Lower interface | 76 mm |
Bushing
| Diameter, upper bushing (C) | Bronze | Composite |
|---|---|---|
| Ø45 mm | 1 x 1003193<br>1 x 1005495 | - |
| Ø40 mm | - | 1 x 5002405 |
| Ø35 mm | - | 1 x 5002406 |
| Ø30 mm | - | 1 x 5002407 |
| Ø25 mm | - | 1 x 5002408 |
The product is supplied with a pin set in the lower position. Supplemented with a bushing in the upper position according to the table.
For further technical information relating to integration, please contact rotator@indexator.com

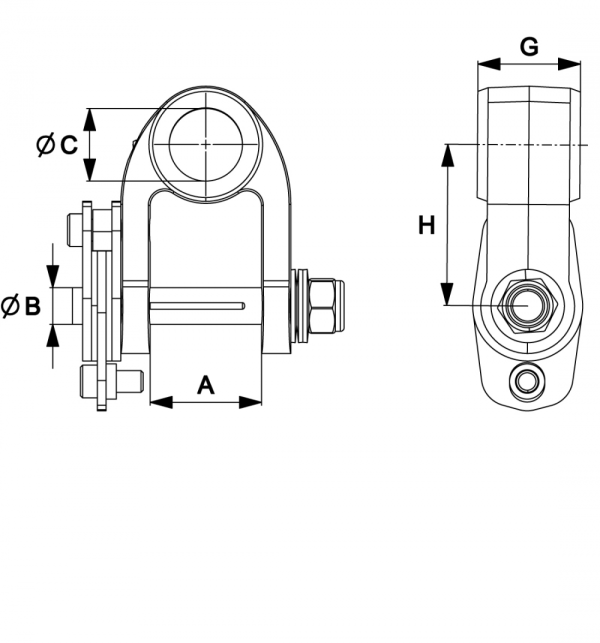

Single swing damper GV 3/4-70A76 mmBØ25 mmCSee tableG70 mmH110 mm
Specyfikacja techniczna
| Part No: | 5030004 |
| Brake against rotator: | Multiple disc brake |
| Upper interface: | 70 mm |
| Lower interface: | 76 mm |
