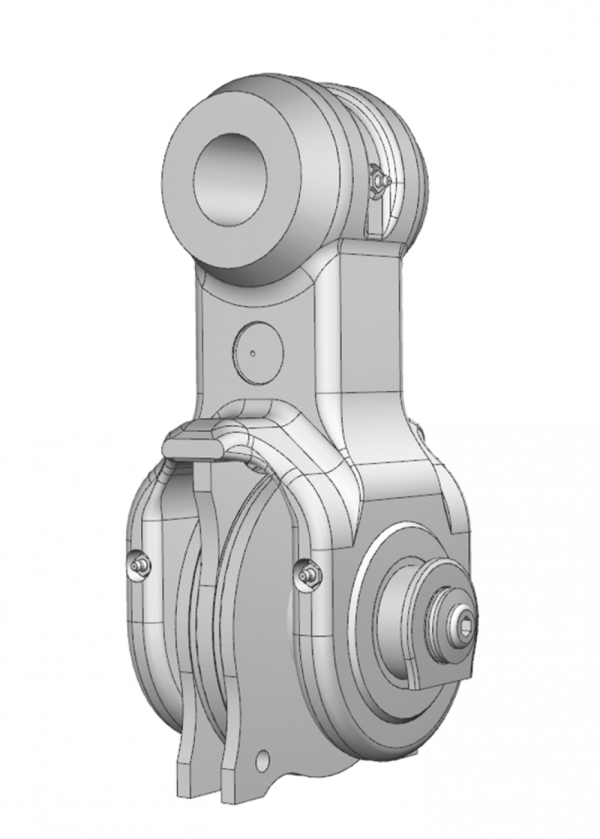

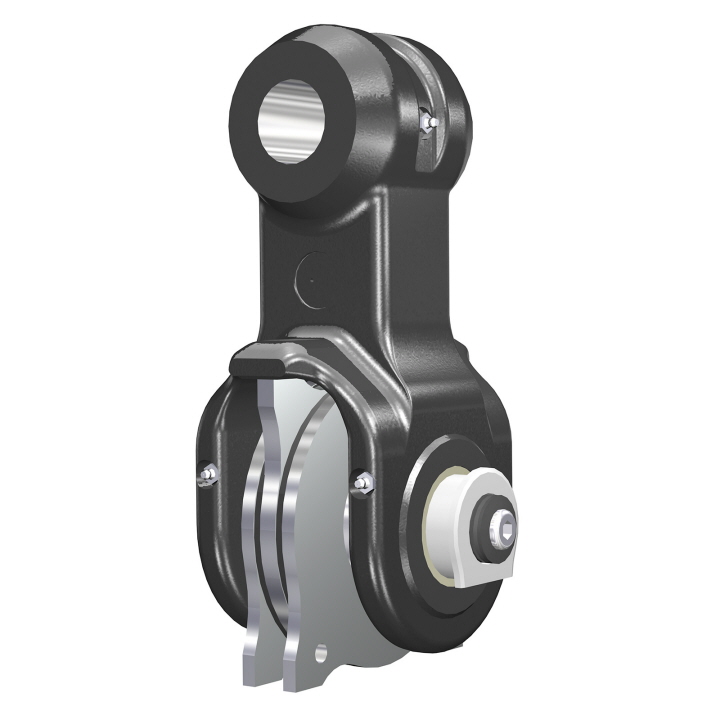

Single swing damper MPB1-125
Technical data
| Part No | 5016552 |
|---|---|
| Brake against rotator | MPB1 |
| Upper interface | 125 mm |
| Lower interface | MPB1 |
Bushing
| Diameter, upper bushing (C) | Bronze | ManganBronze |
|---|---|---|
| Ø45 mm | 2 x 1003896 | 2 x 5006684 |
The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.
For further technical information relating to integration, please contact rotator@indexator.com

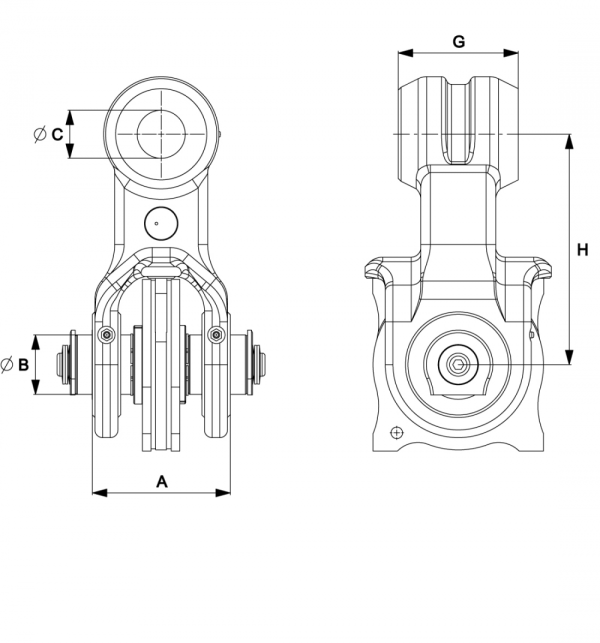

Single swing damper MPB1-125AMPB1BMPBCSee tableG125 mmH240 mm
Specyfikacja techniczna
| Part No: | 5016552 |
| Brake against rotator: | MPB1 |
| Upper interface: | 125 mm |
| Lower interface: | MPB1 |
