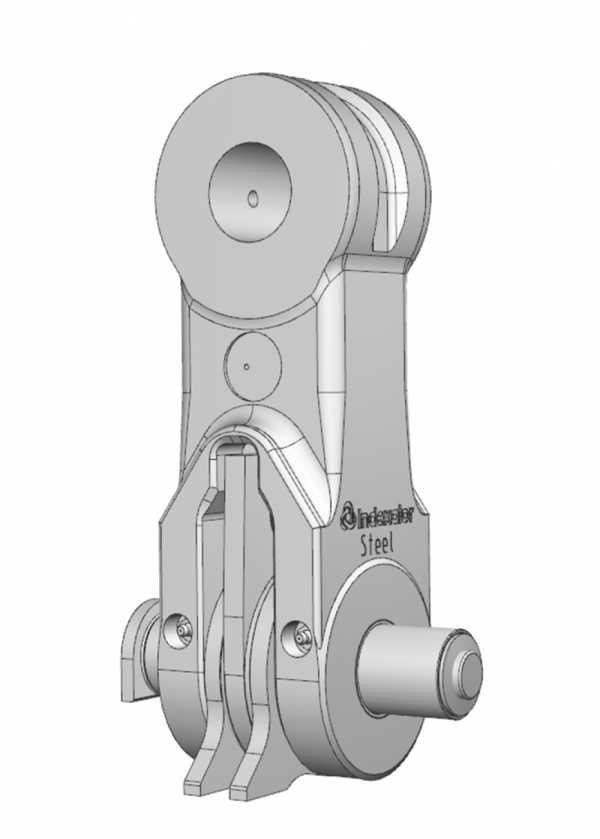

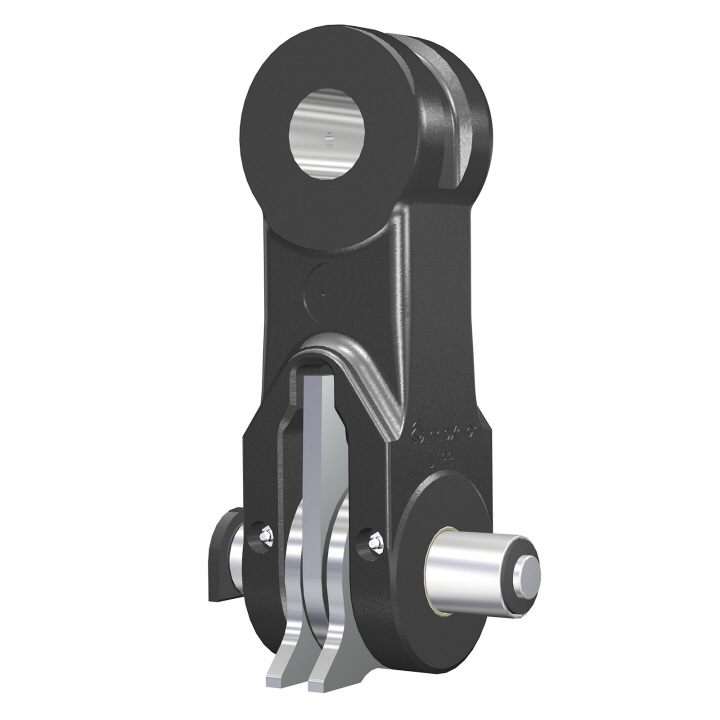

Single swing damper MPBS-80
Technical data
| Part No | 5016229 |
|---|---|
| Brake against rotator | MPBS |
| Upper interface | 80 mm |
| Lower interface | 100 mm |
Bushing
| Diameter, upper bushing (C) | Steel | Bronze | ManganBronze | Composite |
|---|---|---|---|---|
| Ø45 mm | 2 x 1002294 | 2 x 1003193 | 2 x 5006672 | - |
| Ø40 mm | 2 x 5002468 | - | - | 1 x 5002401 |
| Ø35 mm | - | - | - | 1 x 5002402 |
| Ø30 mm | - | - | - | 1 x 5002403 |
| Ø25 mm | - | - | - | 1 x 5002404 |
The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.
For further technical information relating to integration, please contact rotator@indexator.com

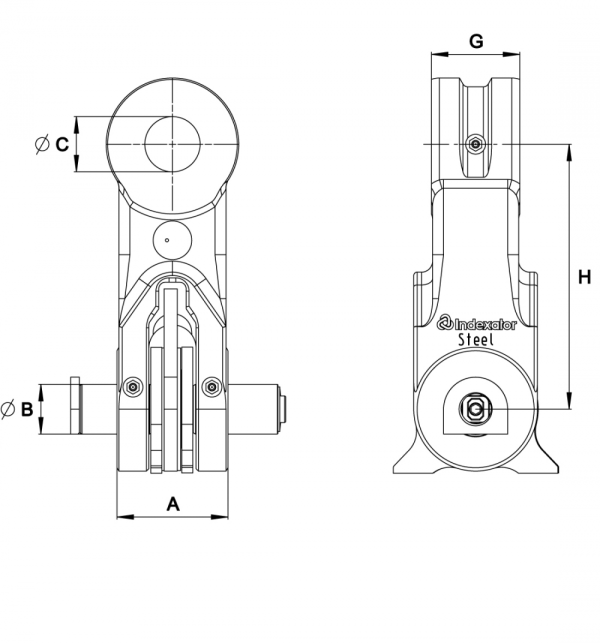

Single swing damper MPBS-80A100 mmBØ45 mmCSee tableG80 mmH240 mm
