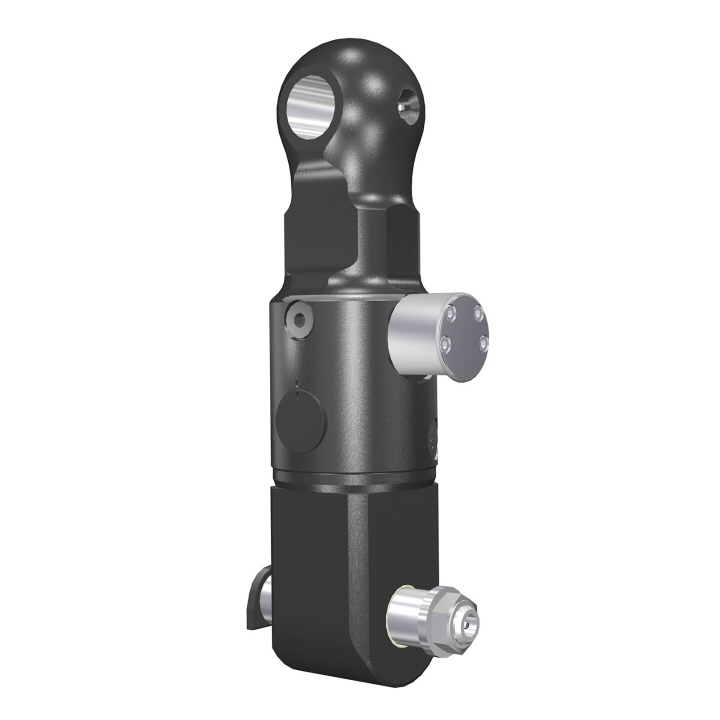

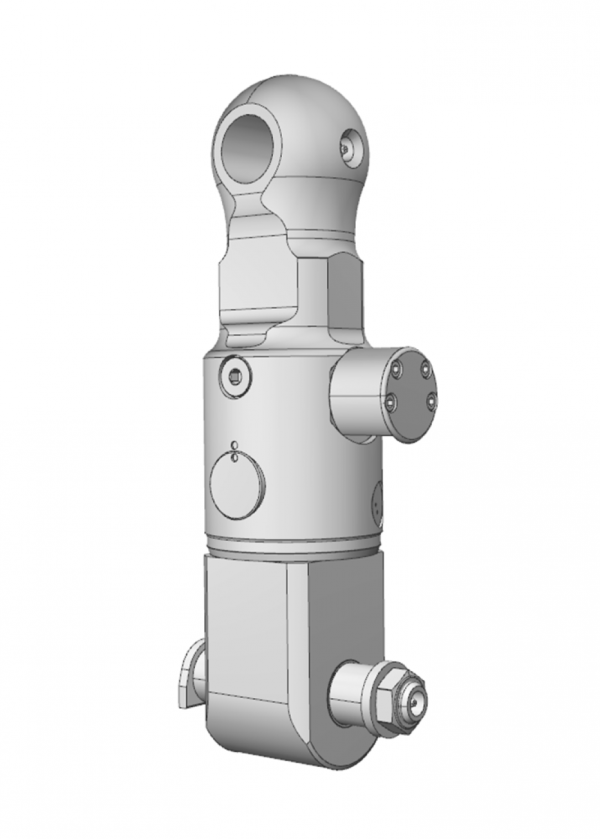

Weighing link S-100
Technical data
| Part No | 5016465 |
|---|---|
| Upper interface | 100 mm |
| Lower interface | 100 mm |
Bushing
| Diameter, upper bushing (C) | Steel | Bronze | ManganBronze | Composite |
|---|---|---|---|---|
| Ø45 mm | 2 x 1002302 | 2 x 1005503 | 2 x 5006683 | - |
| Ø40 mm | 2 x 5002467 | - | - | 2 x 5002414 |
The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.
For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

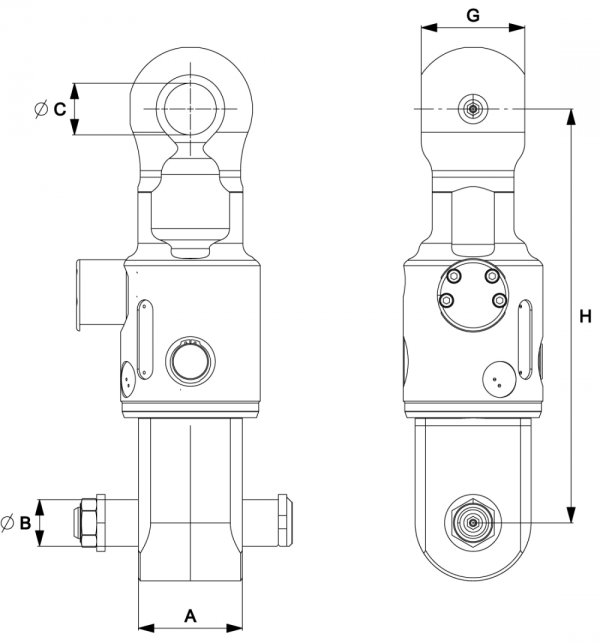

Weighing link S-100A100 mmBØ45 mmCSee tableG100 mmH400 mm
Specyfikacja techniczna
| Part No: | 5016465 |
| Upper interface: | 100 mm |
| Lower interface: | 100 mm |
