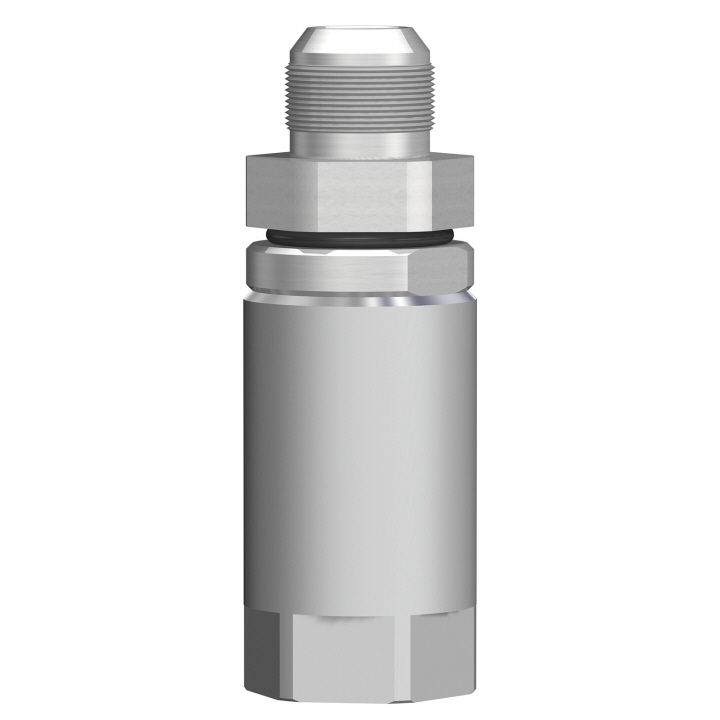

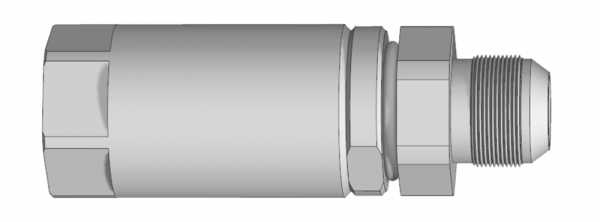

G 1 - 1 5/16”-12 UN | |
---|---|

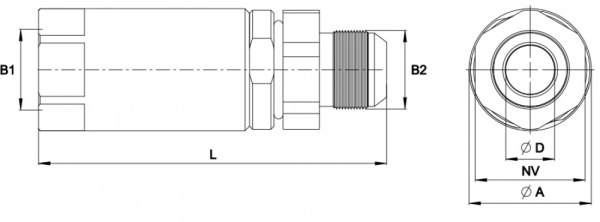

B1 | G 1 |
B2 | 1 5/16”-12 UN |
L | 117 mm |
ØD | 20 mm |
NV | 46 mm |
ØA | 50 mm |
Part No.: | 5001669 |
Type: | Inner x Outer |
Type of connection: | G-JIC |
Max work pressure: | 35 MPa |
Max peak pressure: | 52.5 MPa |
JIC size: | 16 |
Seal kit: | 5001634 |
