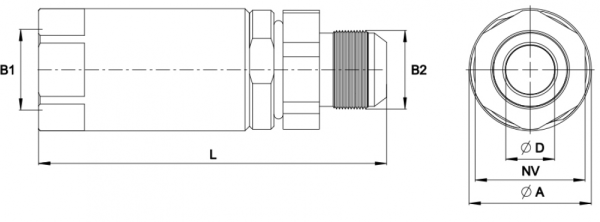

G 1 1/4 - 1 5/8”-12 UN | |
---|---|
B1 | G 1 1/4 |
B2 | 1 5/8”-12 UN |
L | 122 mm |
ØD | 25 mm |
NV | 50 mm |
ØA | 55 mm |
Part No.: | 5001672 |
Type: | Inner x Outer |
Type of connection: | G-JIC |
Max work pressure: | 32 MPa |
Max peak pressure: | 48 MPa |
JIC size: | 20 |
Seal kit: | 5001635 |
