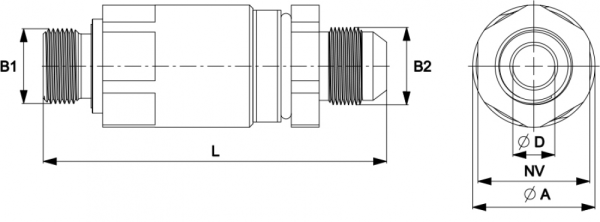

G 1/2 - 7/8”-14 UNF | |
---|---|
B1 | G 1/2 |
B2 | 7/8”-14 UNF |
L | 98 mm |
ØD | 12 mm |
NV | 32 mm |
ØA | 35 mm |
Part No.: | 5001670 |
Type: | Inner x Outer |
Type of connection: | G-JIC |
Max work pressure: | 35 MPa |
Max peak pressure: | 52.5 MPa |
JIC size: | 10 |
Seal kit: | 5001632 |
