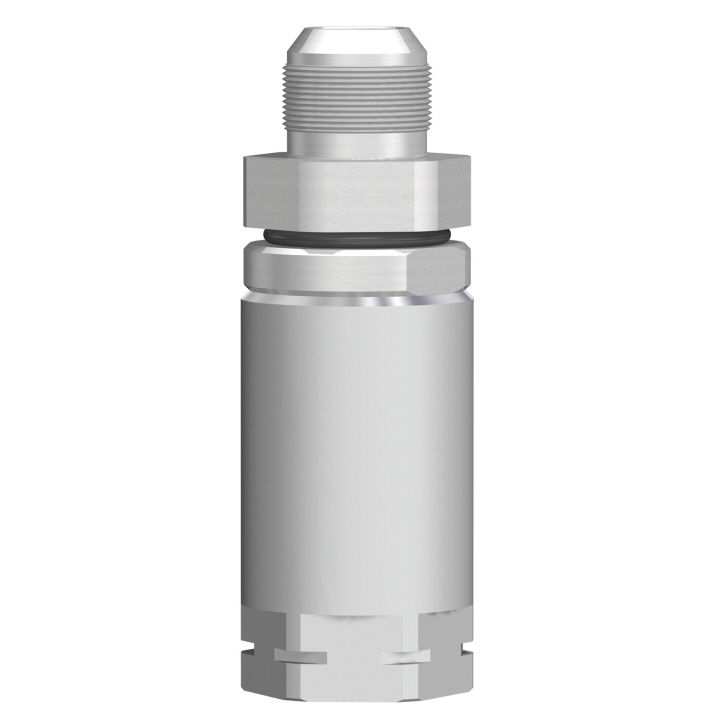

G 3/4 - 1 1/16”-12 UN S | |
---|---|
B1 | G 3/4 |
B2 | 1 1/16”-12 UN S |
L | 114 mm |
ØD | 16 mm |
NV | 36 mm |
ØA | 40 mm |
Part No.: | 5001696 |
Type: | Inner x Outer |
Type of connection: | G-JIC |
Max work pressure: | 35 MPa |
Max peak pressure: | 52.5 MPa |
JIC size: | 12 |
Seal kit: | 5001633 |
