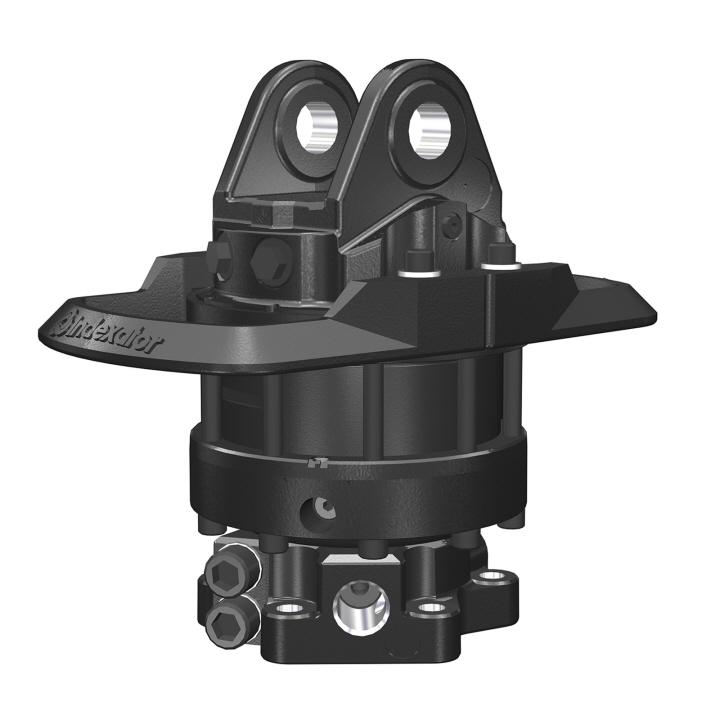

GV 12-2

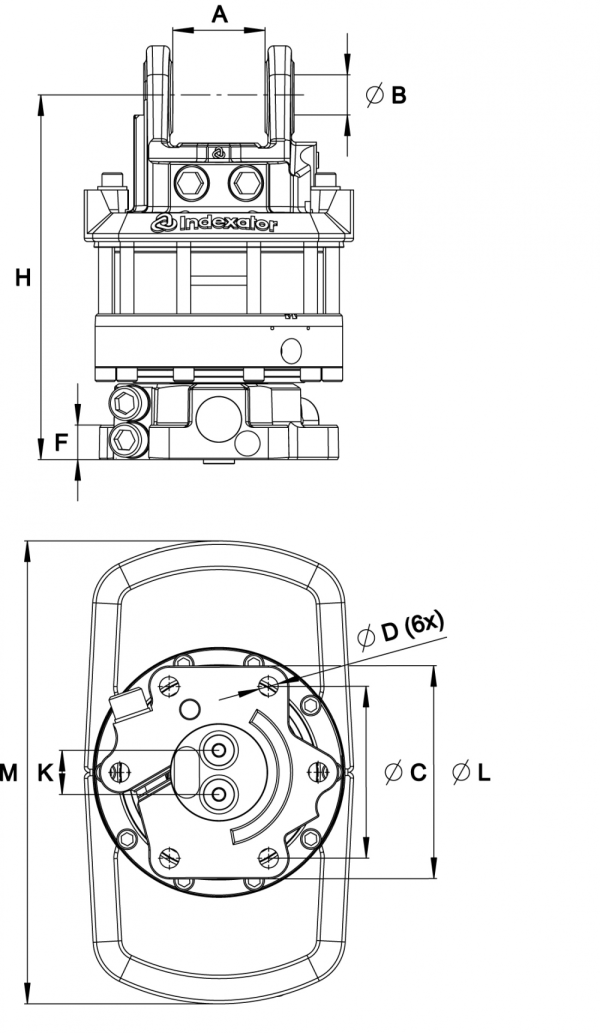

| GV 12-2 | ||
|---|---|---|
| A | 80,5 mm | |
| B | Ø35 mm | |
| C | Ø173 mm | |
| D | Ø17 mm | |
| F | 30 mm | |
| H | 317 mm | |
| K | 38,5 mm | |
| L | Ø209 mm | |
| M | 404 mm | |

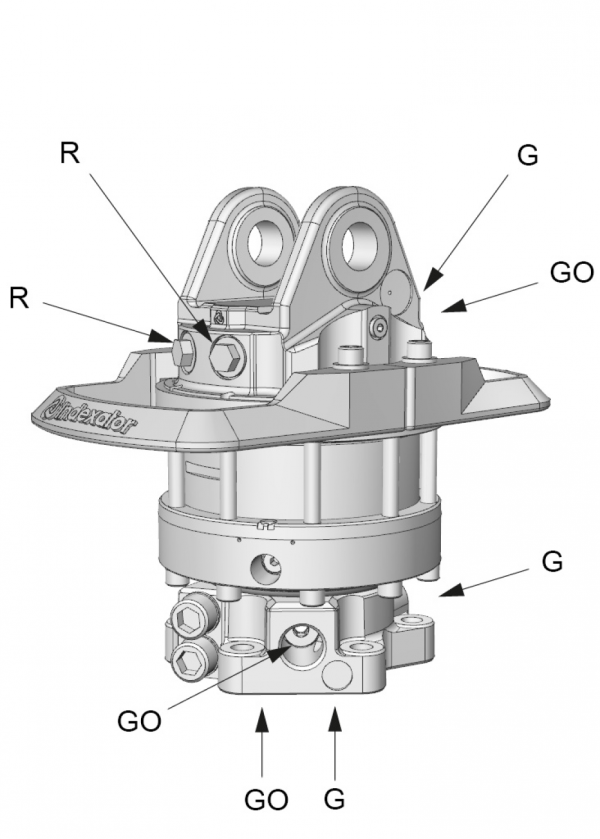

| Connections | ||
| Upper connection | G 1/2 | |
| Lower connection | G 1/2 | |
Specyfikacja techniczna
| Part No.: | 5212048 |
| Type of rotator: | Grapple rotator |
| Weight: | 56.9 kg |
| Rotation: | 360° |
| Max axial load, static: | 100 kN |
| Max axial load, dynamic: | 50 kN |
| Torque at 25 Mpa: | 2200 Nm |
| Rotation max oilflow: | 25 l/min |
| Rotation max working pressure: | 25 MPa |
| Grapple open max working pressure: | 25 MPa |
| Grapple close max working pressure: | 25 MPa |
| Upper interface: | 80 mm |
| Lower interface: | Ø 173 mm |
