GV 4/30 B84 K2

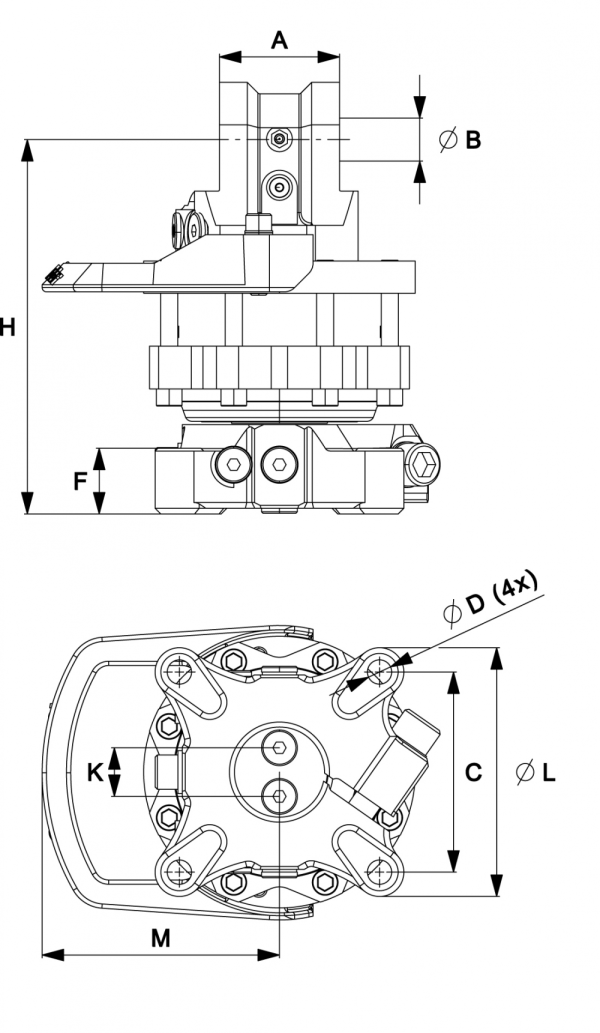

| GV 4/30 B84 K2 | ||
|---|---|---|
| A | 84 mm | |
| B | Ø30 mm | |
| C | 140x140 | |
| D | Ø17 mm | |
| F | 46 mm | |
| H | 263 mm | |
| K | 34 mm | |
| L | Ø232 mm | |
| M | 166 mm | |

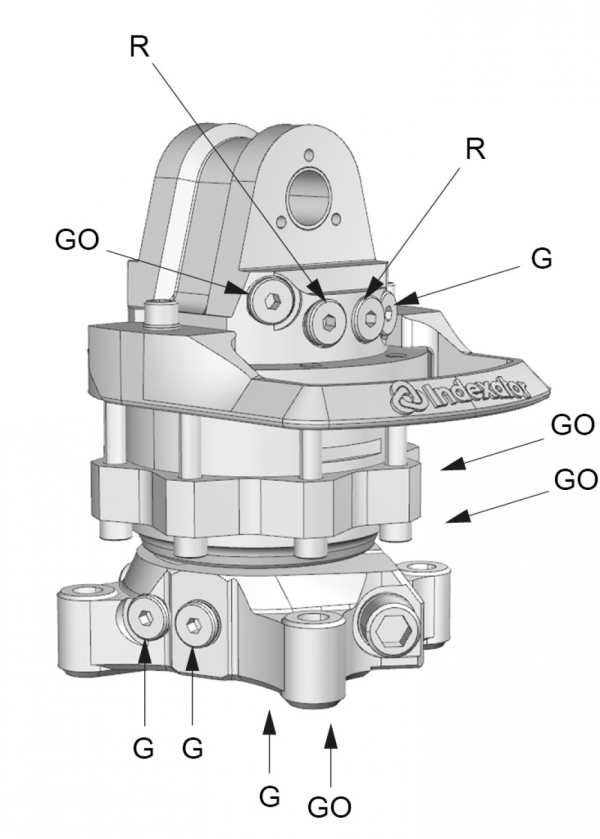

| Connections | ||
| Upper connection | G 3/8 | |
| Lower connection | G 3/8 | |
Specyfikacja techniczna
| Part No.: | 5002706 |
| Type of rotator: | Grapple rotator |
| Weight: | 34 kg |
| Rotation: | 360° |
| Max axial load, static: | 45 kN |
| Max axial load, dynamic: | 25 kN |
| Torque at 25 Mpa: | 1150 Nm |
| Rotation max oilflow: | 12 l/min |
| Rotation max working pressure: | 25 MPa |
| Grapple open max working pressure: | 30 MPa |
| Grapple close max working pressure: | 30 MPa |
| Upper interface: | 84 mm |
| Lower interface: | 140 mm x 140 mm |
